JAGUAR C-X75 CONCEPT IN DETAIL

Jaguar C-X75 Concept
• Stunning range-extended electric supercar concept
• A celebration of 75 years of beautiful, fast Jaguars, points the way to a new design language
• Capable of reaching 330km/h (205mph), sprinting from 0-100km/h (62mph) in just 3.4 seconds and blistering acceleration from 80-145km/h (50-90mph) in just 2.3 seconds
• Four powerful 145kW (195bhp) electric motors – one for each wheel – produce 780bhp and an astonishing total torque output of 1600Nm (1180lb ft)
• Two micro gas-turbines, spinning at 80,000 rpm, can generate enough electricity to extend the range to a remarkable 560 miles; and produce just 28 grams of CO2 per kilometre from the car’s plug-in charge capability
• A zero tailpipe emissions range of 110km (68 miles) while running solely on battery power

Jaguar has revealed a stunning range-extended electric supercar concept car. The C-X75 has been designed to celebrate 75 years of the marque and provide a glimpse into the future of Jaguar and its commitment to producing beautiful, fast cars powered by sustainable means.


75 Years of Jaguar Design

The C-X75 hints at an exciting evolution of Jaguar’s design language while paying homage to some of its most admired cars of years gone by. Advanced design features such as a ground-breaking propulsion system and active aerodynamics allow for an elegantly simple fuselage section that remains stable at very high speeds.

The C-X75 is finished in Jetstream Silver, its designers staying true to the long-held Jaguar design philosophy of natural, flowing lines and simple, elegant forms. Where inspiration from the past was found is in the innovative engineering and functional design elements of cars like the 1950s C-Type and D-Type racers and unique 1966 XJ13 Le Mans prototype – a car described by Callum as, “arguably the most beautiful Jaguar ever made”.

Jaguar C-X75 Concept

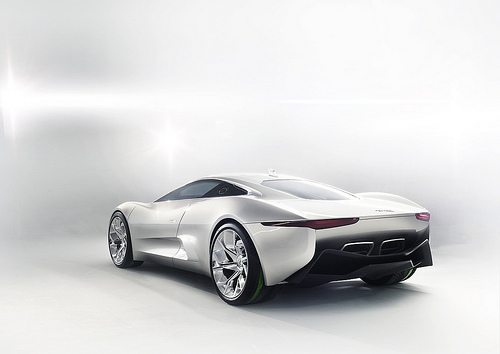

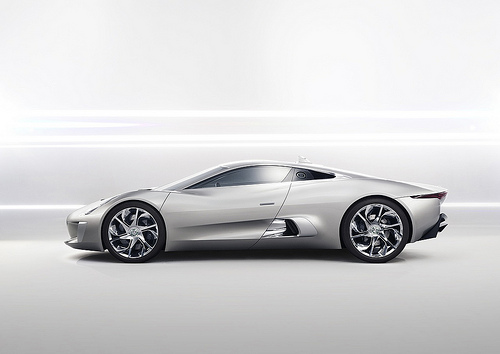

Shorter and lower than the current crop of supercars, its exterior design is about pure performance with a simple central fuselage surrounded by prominent wheel arches. Thanks to the packaging efficiencies provided by the absence of a conventional piston engine, the car’s designers had maximum freedom in placing the mechanical components and creating the most elegant engineering package available.

“The C-X75 is everything a Jaguar should be. It possesses remarkable poise and grace yet at the same time has the excitement and potency of a true supercar. You could argue this is as close to a pure art form as a concept car can get and we believe it is a worthy homage to 75 years of iconic Jaguar design.”
Ian Callum, Design Director, Jaguar Cars

Propulsion system

The 330km/h (205mph) four-wheel drive supercar is capable of running in purely electric (zero tailpipe emissions) mode for 110km (68 miles) on a six-hour domestic plug-in charge. The innovative, lightweight micro gas-turbines are also capable of very quickly and efficiently recharging the Lithium-ion batteries, giving the car a theoretical range of 900km (560 miles).

This remarkable range-extension system is a result of Jaguar’s research engineers adopting a clean-sheet approach to the question of powering the supercars of the future. The C-X75 turns to the very latest evolution of a pioneering British technology: the gas turbine.

Developed in partnership with Bladon Jets, the miniaturised turbine blade – the first viable axial-flow micro-turbine – increases the compression and efficiency of micro gas-turbines to the point at which they can be viewed as a realistic power source. Each of the micro gas-turbines weighs just 35kg and produces 70kW of power at a constant 80,000rpm.

Power and control

The energy created by the turbines and stored in the batteries is transmitted to the road using four independent electric motors. Using individual motors has benefits in terms of weight-saving and distribution, packaging and efficiency. Each motor weighs just 50kg but produces 145kW (195bhp) of power and an astonishing combined total torque output of 1600Nm (1180lb ft).

Because each wheel is driven by its own electric motor, the C-X75 is four-wheel drive – with all the traction, grip and safety benefits that entails – without the weight disadvantages of a purely mechanical set-up. Inherent in this drivetrain is the ability to independently vector torque to each wheel across the full speed range. This offers potential benefits in terms of stability and control, creating an infinitely and instantaneously adjustable traction and stability control system.

Jaguar C-X75 Concept

Driver-focused cabin

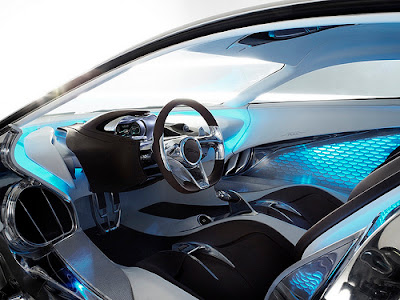

With the seats fixed, the steering wheel, controls, main binnacle and pedal box all adjust towards the driver. The seats are attached to the bulkhead as in a single-seater racing car, and air to feed the turbines passes smoothly around them via channels in the structure of the body.

A new interface for the driver has also been created for the C-X75 using high-resolution TFT screens. Building on Jaguar’s 10-year expertise in touchscreen technology, the Jaguar Co-Pilot display in the centre console supports the driver in extracting the full potential of the C-X75 by seamlessly managing information.

The main driver information screen is housed within the instrument binnacle. Needles float on the periphery of the twin cowls and sweep round the outer edge to display the status and rpm of the two turbines. The design team combined designs from instrumentation in the new XJ saloon with those from fighter aircraft to create virtual 3D ‘gimbals’ around which the gauges wrap and rotate to provide status updates.

75 years of innovation

“Performance through innovation has always been a Jaguar trademark. From the beginning, cars such as the C-Type and D-Type pioneered aluminium construction, aerodynamic design, racing monocoques and disc brakes. The C-X75 demonstrates that Jaguar is still leading the field automotive design and technology. And will always continue to build beautiful, fast cars.”
Ralf Speth, Chief Executive Officer, Jaguar Land Rover

Advanced aluminium lightweight construction

Jaguar’s expertise in the use of aluminium stretches back more than 50 years to the first XK120s, through the lightweight E-Types, the XK and all-new 2010 XJ. It was with this latter creation that Jaguar fully realised the lightweight metal’s benefits to performance, agility, economy and sustainability in a luxury car.

The C-X75 naturally follows the same construction techniques with an extruded and bonded aerospace-inspired aluminium chassis clad in panels of the same material. Not only does this save weight, crucial in a car with an extreme performance envelope, but aluminium
is one of the most easily recyclable metals available, boosting the C-X75’s sustainability as well as its speed.

Jaguar C-X75 Concept

Active Aerodynamics

Aerodynamics have always played a large part in Jaguar design with the late designer Malcolm Sayer elevating it into an art form in cars such as the XJ13, the prototype from which the C-X75 draws inspiration.

Jaguar has increased the design’s aerodynamic efficiency dramatically by opening the front grille and brake cooling vents only when necessary. At the rear corners of the car vertical control surfaces automatically engage at higher speeds to direct airflow aft of the rear wheels for increased stability and efficiency.

The carbon-fibre rear diffuser, a crucial element in guiding airflow under the car and creating downforce includes an active aerofoil, which is lowered automatically as speed increases. Vanes in the exhaust ports then alter the directional flow of the gases to further increase the effectiveness of the Venturi tunnel.

For the full press pack, please log onto www.media.C-X75.com.

Technical Specifications

Propulsion System & Transmission
Electric motor Four 145kW (195bhp) traction motors (580kW/780bhp total)
Generator Two switched reluctance generators
Range Extender power 2 x 70kW (94bhp) gas micro-turbines (140kW/188bhp total)
Batteries Lithium-ion
Total Battery Capacity (kWh) 19.6
Transmission Single-speed
Final Drive Ratio 3.1:1

Performance
0-100km/h (seconds) 3.4
Top Speed (km/h/mph) 330/205
0-160km/h (seconds) 5.5
0-300km/h (seconds) 15.7
1/4 mile (seconds@km/h) 10.3@251
Max. Power (kW/BHP) 580/780
Max. Torque (Nm/lb ft) 1600/1180
Power to Weight ratio (BHP/tonne) 578
Aerodynamics (Cd) 0.32

Economy
EV range (km/miles) 110/68
Extended range (km/miles) 900/560
CO2 emissions (g/km) 28
Fuel tank capacity (litres) 60

Dimensions
Wheelbase (mm/inches) 2725/107.28
Overall Length (mm/inches) 4647/182.95
Overall width (mm/inches) 2020/79.52
Overall Height (mm/inches) 1204/47.40
Kerb weight (kg) 1350
Wheel size front and rear (inches) 21 and 22
Tyres (front and rear) 265/30 ZR21 and 365/25 ZR22
Battery weight (kg) 230


JAGUAR C-X75 CONCEPT FOUR-WHEEL DRIVE ELECTRIC SUPERCAR UNVEILED AT PARIS
